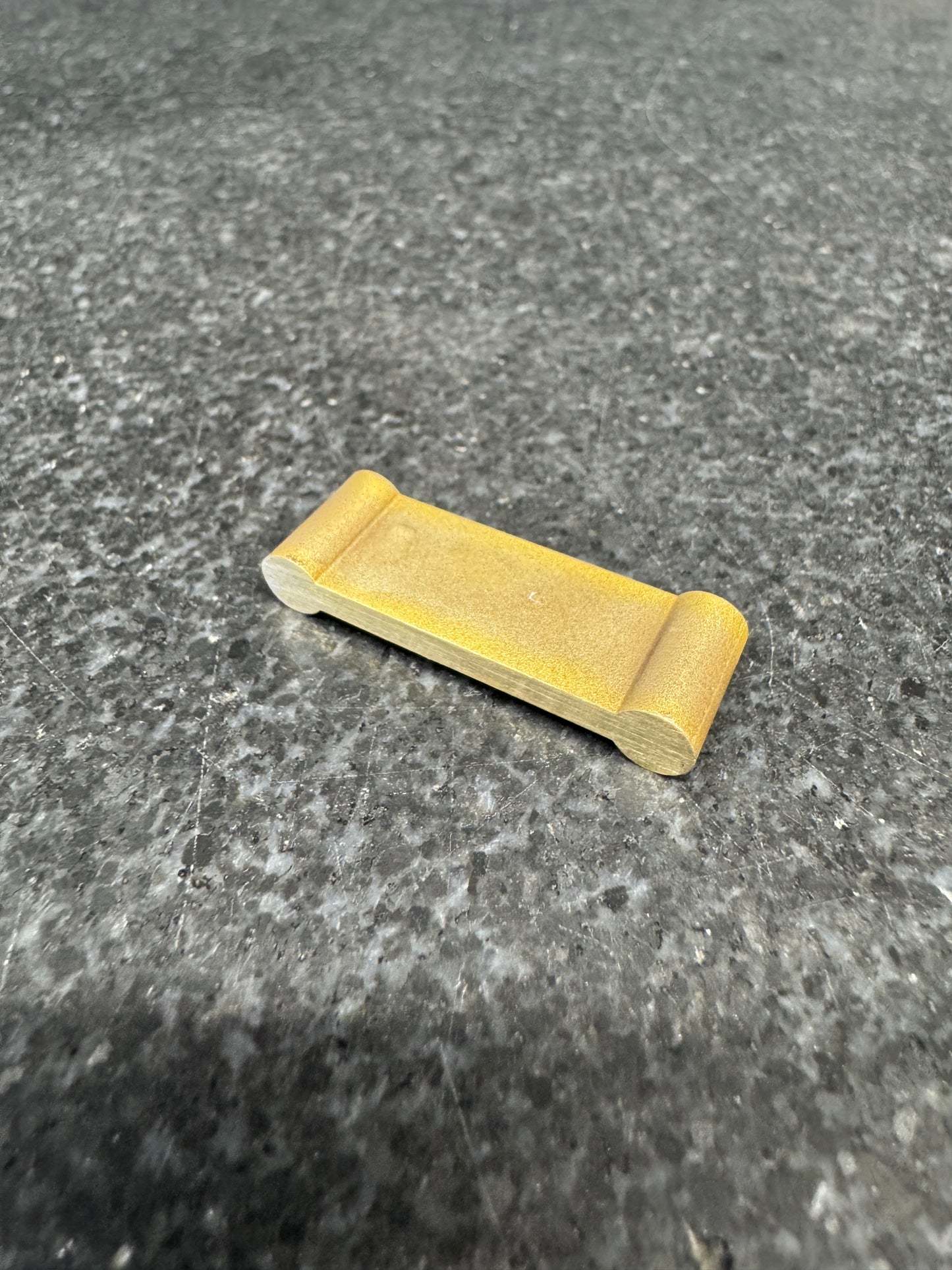

Lakewood Brass Dogbone Stitch — Small (Straight Wall)

A compact, understated solution for fine crack stabilization and subtle mechanical detailing.

The Lakewood Small Brass Dogbone Stitch is designed for situations where restraint matters. Its reduced footprint makes it ideal for narrow splits, delicate repairs, or projects where the stitch should read as a quiet detail rather than a bold statement.

Each stitch is EDM wire-cut from solid brass with straight, parallel sides and no taper, allowing for precise, repeatable installation into a matching pocket. For best results, rout or chisel a clean, straight-walled cavity, apply glue if desired, and seat the stitch flush using a mallet and wood block.

Supplied polished from the shop, the brass can be sealed with clear coat or epoxy to preserve its finish, or left exposed to naturally darken and develop a warm patina over time.

Dimensions — Small

Overall Length: 1.50"
Overall Width: 0.25"
Thickness: 0.50"

Designed, machined, and finished to the same standards we apply to our production tooling—this is a functional repair detail that rewards close inspection.
